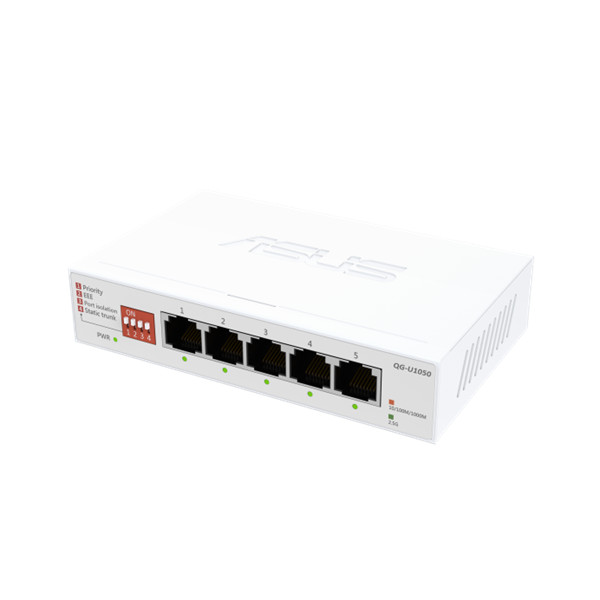

ASUS Switch 5x2.5Gbps, QG-U1050

Model

QG-U1050

Port Attributes

5 x 2.5G ports

Standard

IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3bz 2.5G BASE-T
IEEE802.3az EEE
IEEE802.3x Flow control

Color

White

Performance

MAC address Table: 16K
Packet buffer: 8Mbits
Jumbo Frame: 10K bytes
Forwarding Rate: 18.6Mpps (64-byte)

LED Indicator

Power LED
On: The switch is powered on.
Off: The switch is powered off or the power supply is abnormal.
Blinking: Loop detected.

Port LED (Link/ACT)
Off: Devices are disconnected or the link has failed.
Green On: 2.5Gbps connection
Amber On: 10/100/1000Mbps connection
Blinking: Devices are connected and data is transmitting or receiving. When a loop is detected, the port LED blinks rapidly.

Power Supply

External Power Adapter
Output: 12V/1A

Environmental

Operating Temperature: 0 ~ 40?
Storage Temperature: -40 ~ 70?
Operating Humidity: 10% ~ 90% RH (non-condensing)
Storage Humidity: 5% ~ 90% RH (non-condensing)

Package Content

ASUS QG-U1050 Switch
Power Adapter
Quick Start Guide
Warranty Card

Product Weight (g)

230 g

Product Dimensions

121 x 75 x 26 mm
