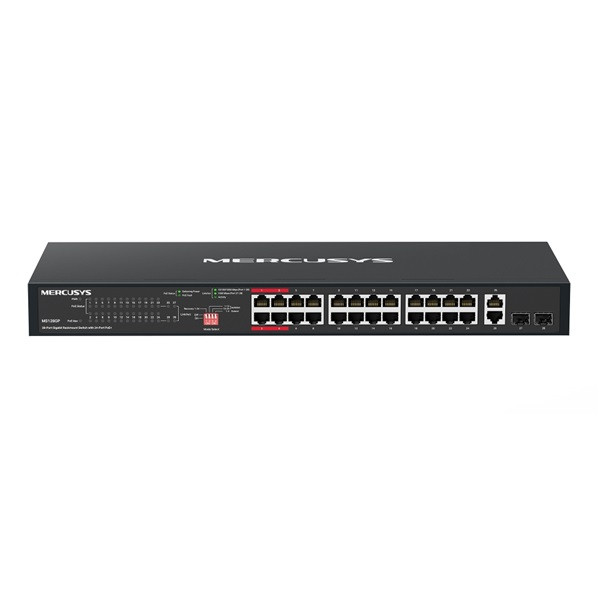

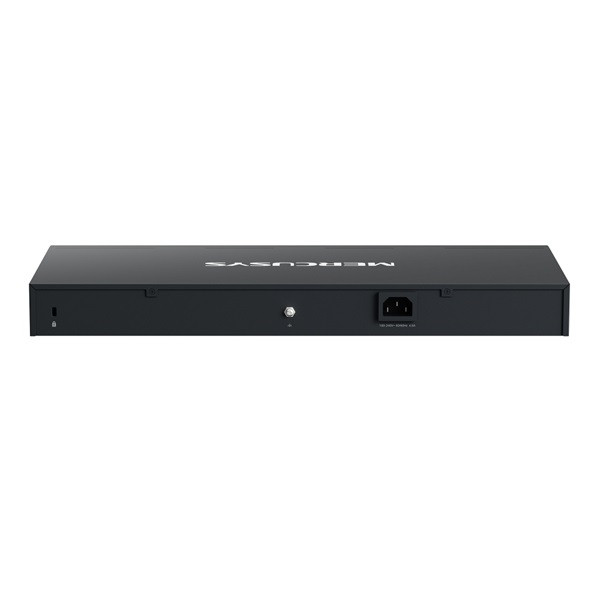

MERCUSYS Switch 28x1000Mbps(24xPOE+) + 2xSFP, Fémházas Asztali Rackes, MS128GP

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

• Standard: compatible with 802.3af/at PDs
• PoE Ports: Ports 1–24, up to 30 W per port
• PoE Power Budget: 295 W

• 24× 10/100/1000 Mbps PoE+ RJ45 Ports
• 2× 10/100/1000 Mbps RJ45 Ports
• 2× Gigabit SFP Slots

• 10BASE-T: 2-pair UTP/STP of Cat. 3 or above (?100 m)
• 100BASE-TX: 2-pair UTP/STP of Cat. 5 or above (?100 m)
• 1000BASE-T: 4-pair UTP/STP of Cat. 5e or above (?100 m)
• 1000BASE-X: MMF, SMF

2 Fans

Yes

56 Gbps

• Power
• Link/Act
• PoE Status
• PoE Max

8 K

• 350.14 W (110V/60 Hz @ 25 °C, with 295 W PD connected)
• 336.58 W (220V/50 Hz @ 25 °C, with 295 W PD connected)

• 1193.98 BTU/hr (110V/60 Hz @ 25 °C, with 295 W PD connected)
• 1147.74 BTU/hr (220V/50 Hz @ 25 °C, with 295 W PD connected)

Store and Forward

• Compatible With IEEE 802.3at/af Compliant PDs
• Extend Mode (Up to 250m PoE power supply and data transmission)
• Priority Mode (Ports 1-4)
• Isolation Mode (Ports 1-12, 13-24)
• PoE Auto Recovery (Ports 1-24)
• MAC Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control

CE,  RoHS

• MS128GP
• Power Cord
• Installation Guide
• Mounting Brackets and Fittings

• Operating Temperature: -10°C to 45°C (14°F to 113°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% RH, non-condensing
• Storage Humidity: 5% to 90% RH, non-condensing
