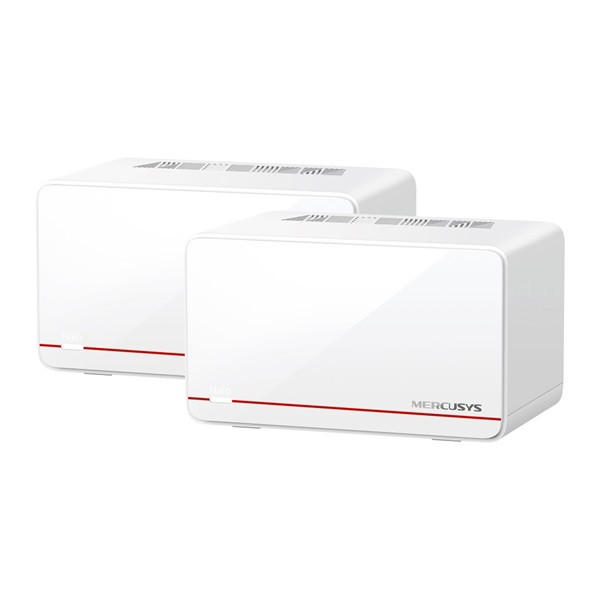

MERCUSYS Wireless Mesh Networking system BE6500 HALO H37BE(2-PACK)

5 GHz: IEEE 802.11a/n/ac/ax/be mixed

2.4 GHz: IEEE 802.11b/g/n/ax/be

5760 Mbps at 5 GHz

688 Mbps at 2.4 GHz

2.4G: -97dBm

5G: -97.5dBm

5G band1 band2<23dBm

5G band3<30dBm

2.4G band<20dBm

WPA-PSK/WPA2-PSK/WPA3-SAE

802.11k/v/r

5.91 × 3.70 × 3.39 in (150 × 94 × 86 mm))

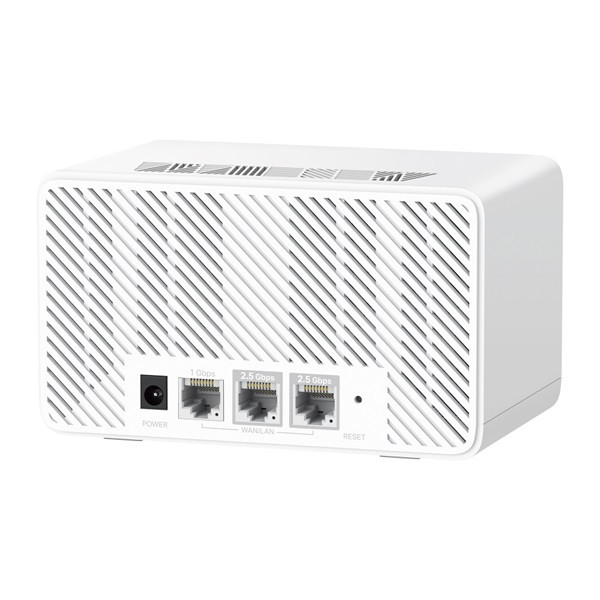

2× 2.5 Gbps Ports (WAN/LAN auto-sensing)

1× 1 Gbps Port (WAN/LAN auto-sensing)

Reset button

Router, Access Point

WMM

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Local Management, Remote Management, Multi-Managers

SPI Firewall

Supports IPv4 and IPv6

2.4 GHz Guest Network

5 GHz Guest Network

Server, Client

Web Server

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443; Protocol: TCP

DHCP Server

IP address assignment (DHCP)

• Port: 67; Protocol: UDP

DNS

DNS

• Port: 53; Protocol: TCP & UDP

App management

Manage and configure device through app

• Port: 20001; Protocol: TCP

• Port: 20002; Protocol: UDP

2-pack

2× Halo H37BE Units
1× RJ45 Ethernet Cable
2× Power Adapters
Quick Installation Guide

3-pack

3× Halo H37BE Units
1× RJ45 Ethernet Cable
3× Power Adapters
Quick Installation Guide

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
