All-in-one router and security gateway with an integrated PoE switch and network video recorder.

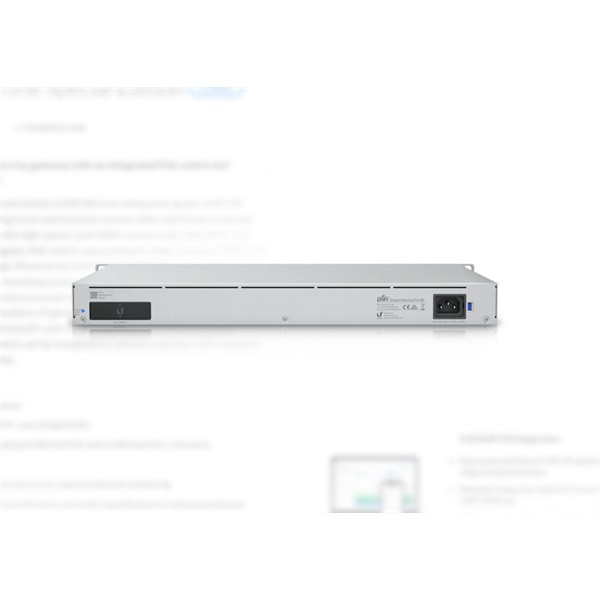

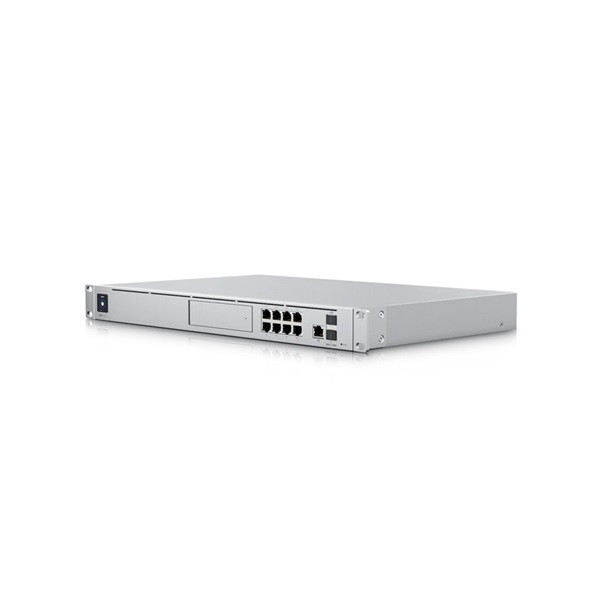

The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage. Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It's also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFI Network application (web or mobile).
Features:
442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
4.95 kg (10.91 lb)
Aluminium CNC, SGCC steel
SGCC steel rack mount
Quad-Core ARM® Cortex®-A57 at 1.7 GHz
4 GB DDR4
16 GB eMMC Integrated 128 GB SSD
3.5 Gbps*
*Measured with iPerf3
50W
(1) Universal AC input, 100-240VAC, 4.4A Max, 50/60 Hz
(1) USP-RPS DC input, 52VDC, 3.94A
AC/DC, Internal, 240W
100 to 240VAC
Ethernet Bluetooth
(1) WAN: 2.5 GbE RJ45 port (8) LAN: 1 GbE RJ45 ports
(1) WAN: 10G SFP+
(1) LAN: 10G SFP+
(2) PoE+ IEEE 802.3at (pair A 1, 2+; 3, 6-)
(6) PoE IEEE 802.3af (pair A 1, 2+; 3, 6-)
15.4W
30W
44 to 57V
50 to 57V
Air: ± 15 kV, contact: ± 8 kV
(1) 1.3" touchscreen
Bootup animation: bootup in progress
Firmware upgrade icon: firmware upgrading
Factory reset
-10 to 40° C (14 to 104° F)
5 - 95% noncondensing
CE, FCC, IC
White: link/activity
White: disk activity
Amber: disk error
Blue: ready
