ZYXEL Switch 8x1000Mbps + 2x2500Mbps + 2xSFP+ Nem Menedzselhető, XGS1010-12-ZZ0102F

Standard

• IEEE 802.3 10BASE-TX Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE802.3ab 1000BASE-T
• IEEE 802.3bz 2500BASE-T Gigabit Ethernet
• SFF-8431
• IEEE 802.3az Energy Efficient Ethernet
• IEEE 802.3x full duplex operation and flow control

Performance

• Switching capacity: 66 Gbps
• Switching forwarding rate: 49 Mpps
• MAC address table: 16 K
• Packet buffer: 1.5 MB
• Jumbo frame support up to 12 KB

Features

• 10M,100M,1G,2.5G and 10G ports for multi speed
• Fanless and quiet
• Plug and Play, Easy use and Quick Install
• Support IEEE 802.3az Energy Efficient

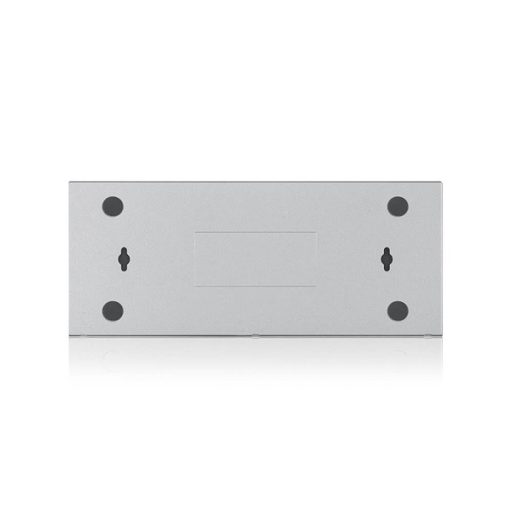

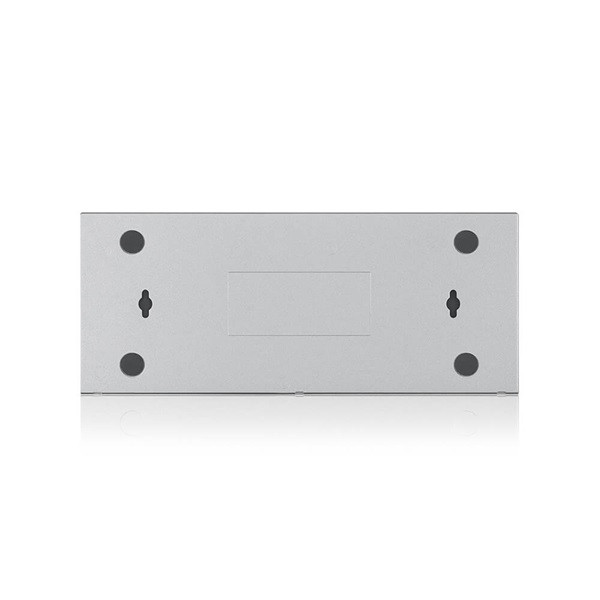

• Desktop and Wall mount
• Auto-MDI/MDIX in all ports
• QoS ports for smooth media streaming, VoIP calls, and online gaming
• Weighted Fair Queuing (WFQ) priority QoS

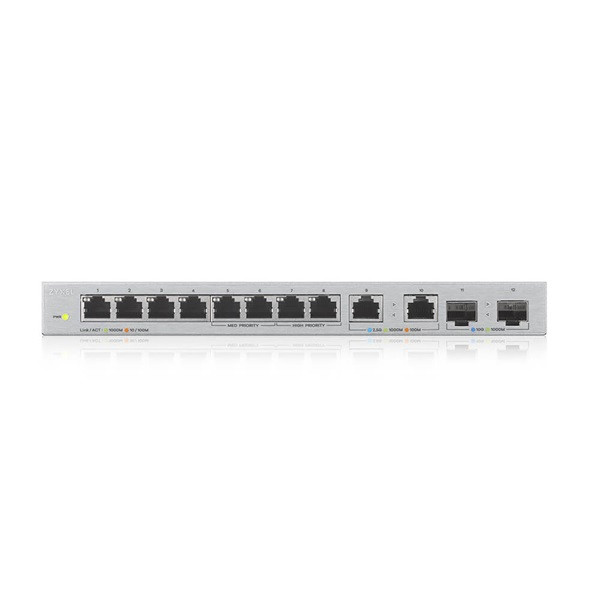

Interface

• 8 x RJ-45 10/100/1000 Mbps Ethernet port with metal shielding
• 2 x RJ-45 100/1000/2500 Mbps Ethernet port with metal shielding
• 2 x SFP+
• Hardware reset button

LED Indicator

• PWR: Power
• Port 1~8: Link/Activity
  • Green: 1000 Mbps
  • Amber: 10/100 Mbps
• Port 9~10: Link/Activity
  • Sky Blue : 2.5Gbps
  • Green : 1Gbps
  • Amber: 100Mbps
• Port 11~12: Link/Activity
  • Blue: 10Gbps
  • Green : 1000Mbps

Power Supply

• AC-to-DC external power adapter
• Input: 100-240V~50-60Hz
• Output: 12V DC/1.5A
