Description
Product name

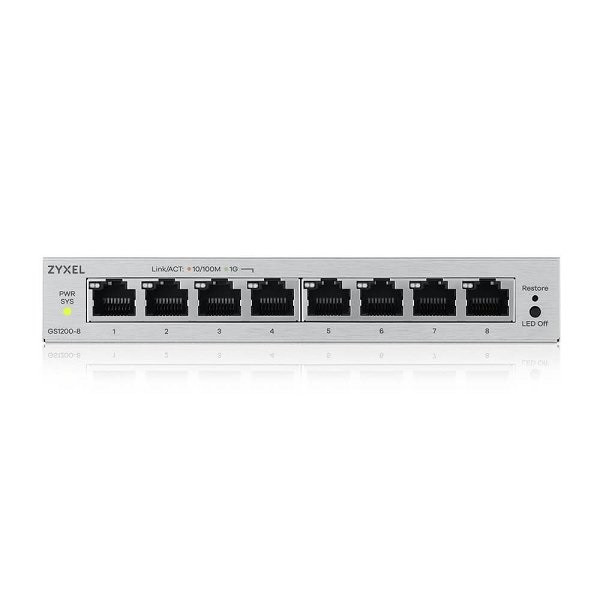

8-Port Web Managed Gigabit Switch
Case
Metal
Key Features
Auto MDI/MDI-X
Yes
Store and Forward
Yes
Full Duplex Capability
Yes
Flow Control
Yes
Hardware
10/100/1000 Mbps Ethernet Ports
8
10/100/1000 Mbps Ethernet PoE+ Ports
-
Performance
Switching Capacity
16 Gbps
MAC Address
4K
Memory Buffer
192 KB
Jumbo Frames
Up to 9 KB
System Features
Web GUI
Yes
802.3x Flow Control
Yes
802.1Q VLAN
Yes
WRR Priority QoS
Yes
Port-based QoS
Yes
802.1p CoS
Yes
Broadcast Storm Control
Yes
Loop Detection /Prevention
Yes
IGMP Snooping v1/v2/and v3 Compatitble
Yes
Link Aggregation
Yes
Port Mirroring
Yes
Green Features
Fanless
Yes
Power Saving by Detecting Link Status & Cable Length
Yes
Power
Input
100 - 240 V AC, 50/60 Hz
Power supply
External
Max. power consumption (watt)
4.48
Min. power Consumption (watt)
0.424
Physical Specifications
Item
Dimensions (WxDxH)
155x 85 x 26 mm (6.1” x 3.0” x 1.0”)
Weight
325g (0.72 lb.)
Packing
Dimensions (WxDxH)
161 x 90 x 95 mm (6.3” x 3.5” x3.7”)
Weight
497g (1.10 lb.)
Environmental Specifications
Operating
Temperature
0°C to 40°C/32°F to 104°F
Humidity
10% to 90% (non-condensing)
Storage
Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)
